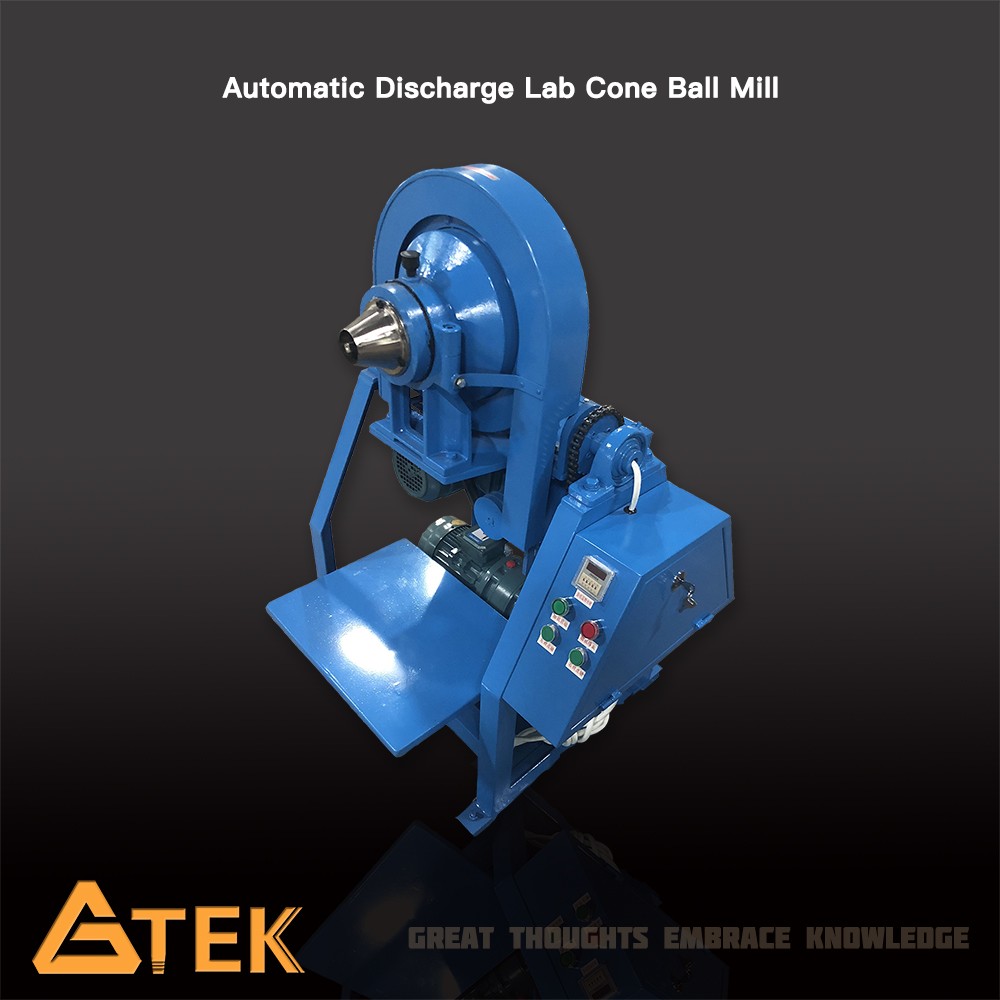

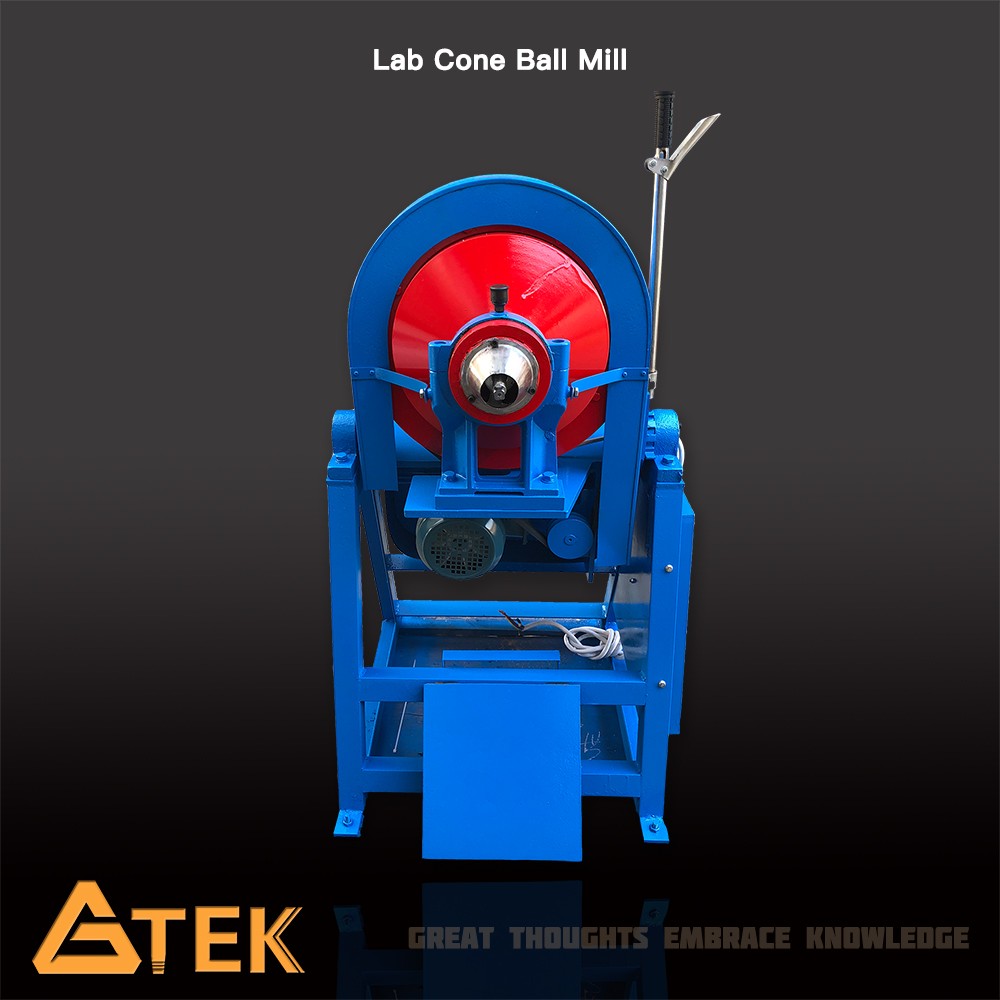

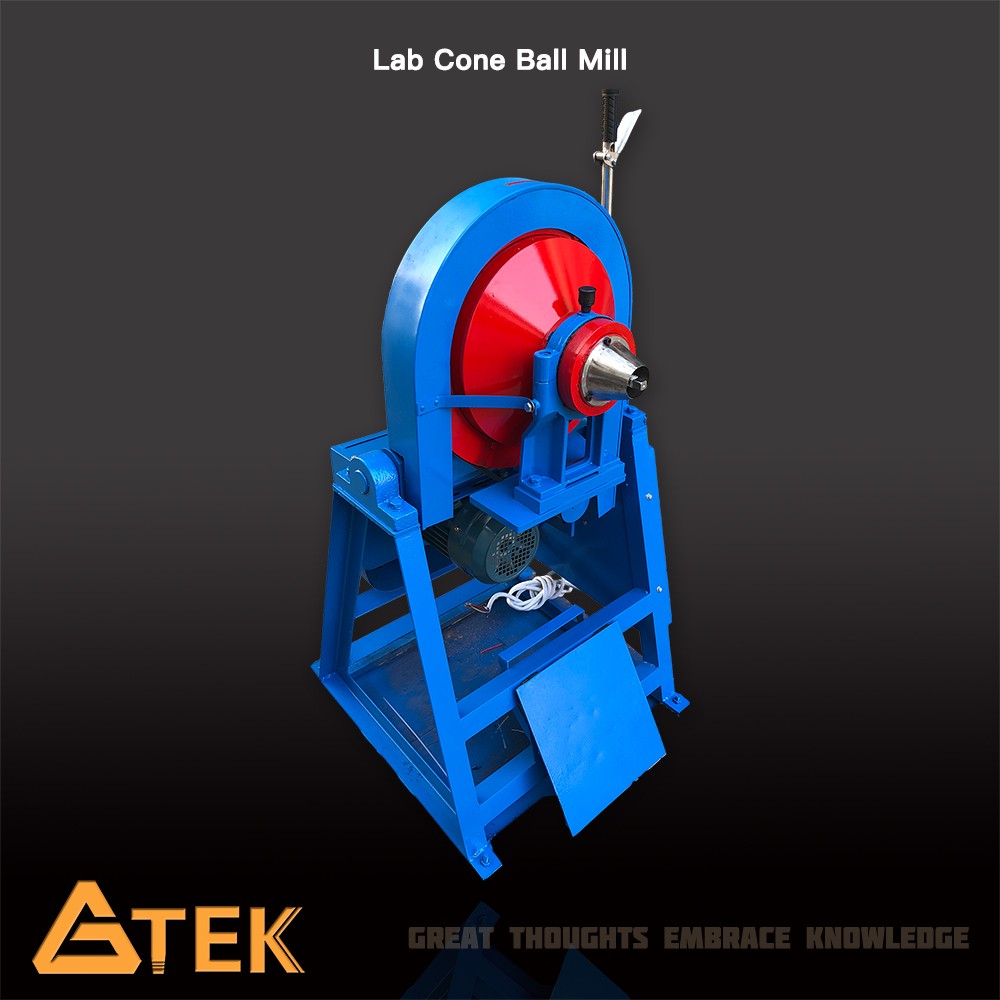

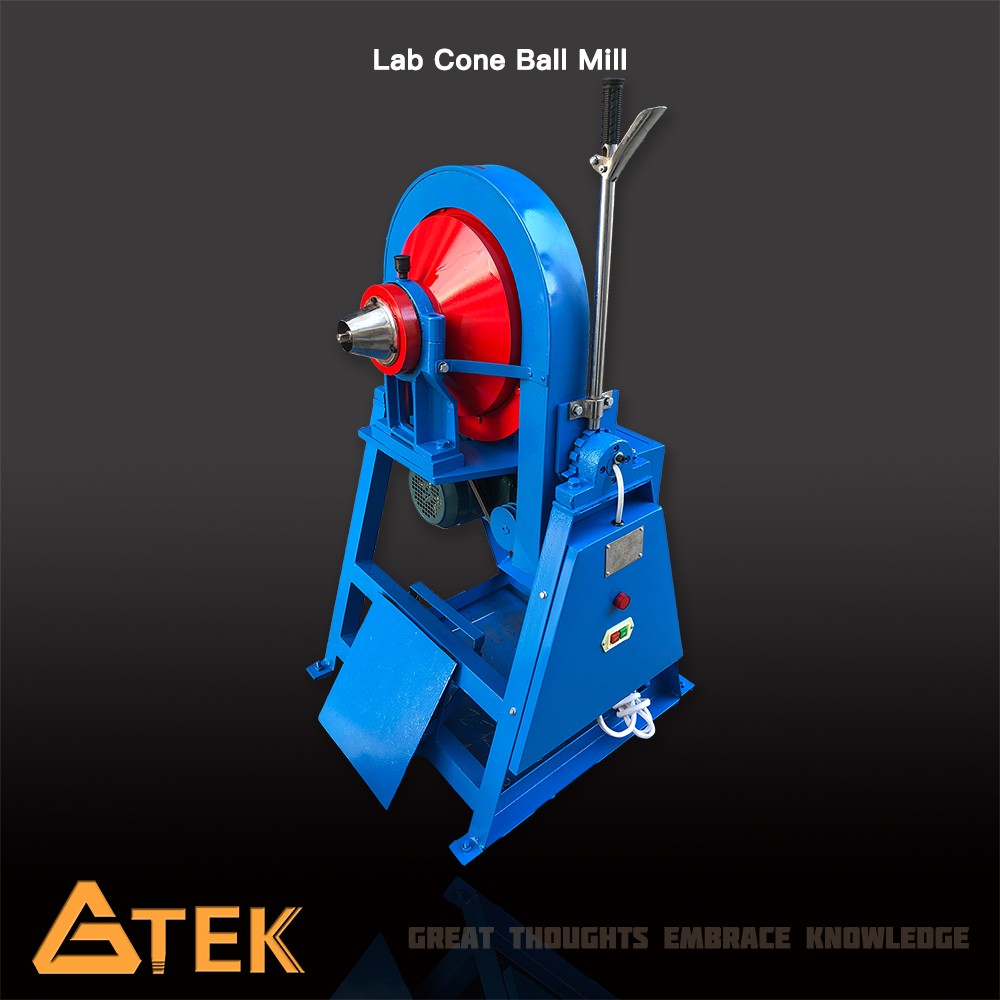

GTEK XMQ series cone ball mill is a laboratory grinding equipment for wet grinding of ore (150×50 cone ball mill can also be used for dry grinding).
Descrption
GTEK XMQ series Cone Ball Mill is a laboratory grinding equipment for wet grinding of ore (150×50 cone ball mill can also be used for dry grinding). It is suitable for mineral feasibility study of laboratories in schools, research institutes and ore beneficiation plants. XMQ cone ball mill can also be used for grinding of a small amount of material in the field of metallurgy, geology, chemistry and construction.
Working Principle
The nodular graphite iron drum is connected with the big belt wheel by screw bolt. The one end of drum is open, and the other end hollow trunnion. Both ends are withstood by a pair of support and base bearing. The base bearing seat and support frame are mounted on support frame which can rotate in 180°.
The support plate are mounted on the frame with two bearing seat. The slewing ring can rotate 22.5°, 67.35°and 90° left and right from horizontal through control handle and alignment plate, so that ore loading, discharging, ball taking out, and rustproof fluid filling can be accomplished.
The right end of the drum is with ore feeding stopper, the left end with ore discharging cap, when the Cone Ball Mill is working, tighten the screw bolt in a clockwise direction with a special wrench until the rubber gasket in the discharge cap tighten the screw bolt three or four turns, the cap withdraw outside 6~10mm, and without taking the cap away, the ore can be discharged. The discharge end is coupled with slurry collecting cover, so that the slurry splash phenomenon can be avoided completely.
Features
Exquisite design, small and compact structure;
Multifunctional and easy to use;
Uniform discharging size;
Automatic control(Optional).
Model | XMQ150×50 | XMQ150×100 | XMQ240×90 | XMQ350×160 |
Drum Size (mm) | Φ150×50 | Φ150×100 | Φ240×90 | Φ350×160 |
Capacity (g) | 200 | 400 | 1000 | 4000 |
Feeding Size (mm) | ≤3 | ≤3 | ≤3 | ≤3 |
Discharging Size (mm) | ≤0.074 | ≤0.074 | ≤0.074 | ≤0.074 |
Power (kW) | 0.25 | 0.25 | 0.55 | 1.1 |
Dimensions (mm) | 915×530×1160 | 915×750×1160 | 1050×640×1160 | 700×575×1190 |
Weight (kg) | 90 | 130 | 170 | 300 |
